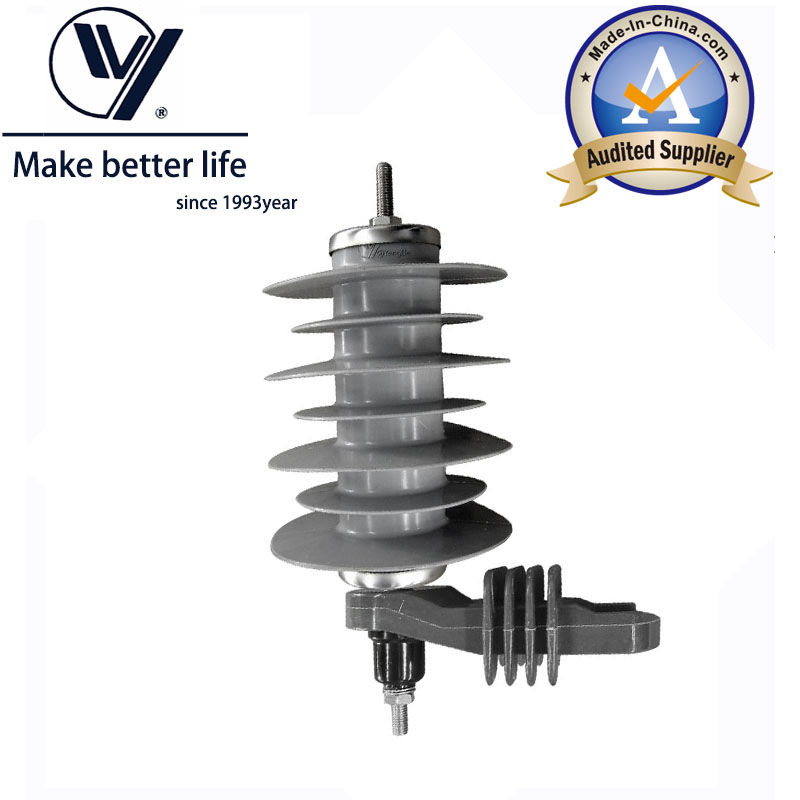

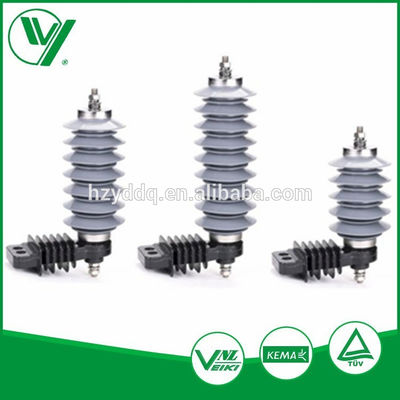

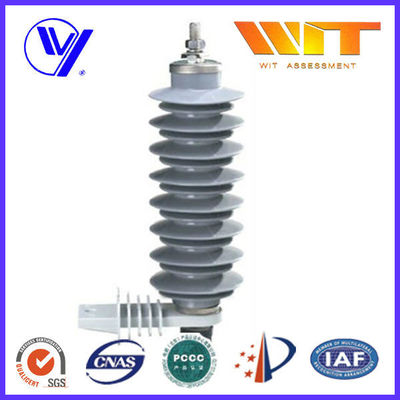

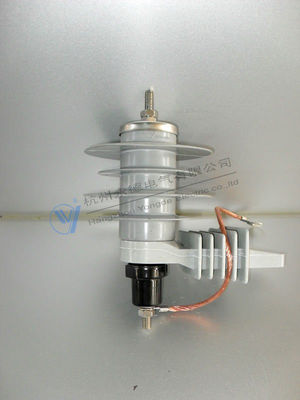

21kV 10kA Polymeric Lightning Arrester YH10W5-21 for Substation

MOQ:	1
fiyat:	0.1

Detail Information

Product Description

Detail Information

Sertifika:

ISO9001, Kema

Model numarası:

YH10W5-21

Kurulum türü:

Tandem Tutucu

Malzeme:

Zno

Boyutlar:

425mm x 145mm x 235mm

Ağırlık:

8kg/karton

Nominal Voltaj:

21kv

Nominal akım:

10kA

Artık voltaj (5ka):

57.7kv

DC Referans Voltajı:

29.7kV

Yıldırım Dürtü:

150kV

Güç frekansı dayanıklı:

50kv

Kaçma Mesafesi:

662mm

Konut malzemesi:

Silikon kauçuk

Çalışma sıcaklığı:

-40 ila +40 ° C

Maksimum rüzgar hızı:

35 m/s

Vurgulamak:

21kV polymeric lightning arrester

substation lightning arrester 10kA

YH10W5-21 lightning arrester

Product Description

Power Distribution Line Type Arrestor 21kV 10kV Polymeric Lightning Arrester

Product Specifications

Attribute	Value
Model NO.	YH10W5-21
Installation	Tandem Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Shape	Spiral
Material	ZnO
Brand	Yongde
Transport Package	Wooden Case
Specification	IEC60099-4
Trademark	YONGDE
Origin	China
HS Code	85354000
Production Capacity	5000 PCS/Month

Product Details

Product Name: 21kV, 10kA Polymeric Lightning Arrester
Item No: YH10W5-21/57.7
Size: 425mm × 145mm × 235mm (3 pieces per carton)
Packing: Carton with polyfoam insert parts
MOQ: 1 set
Production Capacity: 400 sets per day
Weight: 8kg/carton
Trade Terms: FOB, CIF (or negotiable)
Loading Port: Ningbo/Shanghai (or as customer requirement)
Loading Ability: 20'GP 4400 sets, 40'GP 8700 sets

Working Conditions

Environment temperature: -40°C to +40°C
Altitude: <1000m
Rated frequency: 48Hz to 62Hz
Power frequency voltage should not exceed continuous running voltage
Maximum wind speed should be less than 35m/s
Earthquake intensity should be less than 7 degree
Special consideration required for use in contamination areas

Technical Parameters

Type	YH10W5-21/57.7	4/10µS High current impulse kA	100
Rated voltage (kV)	21	Lightning impulse withstand (kV)	150
MOCV (kV)	17	Power frequency voltage withstand (dry/wet) (kV)	50
Nominal Current (kA)	10	0.1S TOV (kV)	25.2
Residual voltage of steep impulse at 5kA (kV)	62.5	1S TOV (kV)	24.15
8/20µS Residual voltage of lightning impulse current at 5kA (kV)	57.7	10S TOV (kV)	23.1
Residual voltage of switching impulse current at 1kA (kV)	43.7	1200S TOV (kV)	21
1mA D.C reference voltage (kV)	29.7	Creepage distance (mm)	662
Line discharge level	1	Material employed in series non-linear resistor	Zinc Oxide
2mS long duration impulse current (A)	400	Material of housing	Silicon Rubber
