132kV Porcelain Housing Lightning Arrester Y10W5-132 for Substations

MOQ:	3
fiyat:	1

Detail Information

Product Description

Detail Information

Sertifika:

ISO9001

Nominal Voltaj:

132KV

Yükseklik:

1970mm

Kaçma Mesafesi:

4250mm

Maksimum sistem voltajı:

145/161kv

Hat deşarj seviyesi:

2/3/4

Uzun süreli akım dürtüsü:

600/800/1000a

4/10μs akım dürtüsü:

100kA

Yıldırım Dürtü:

650kv

Güç frekansı voltajı dayanıklı:

275KV

MCOV:

106kv

Nominal akım:

10kA

Artık voltaj (5ka):

396kV

8/20μs artık voltaj:

334kV

Dürtüsel kalıntı voltajı anahtarlama:

263kv

1mA DC Referans Voltajı:

192kv

Vurgulamak:

132kV porcelain lightning arrester

substation lightning arrester Y10W5-132

high voltage porcelain arrester

Product Description

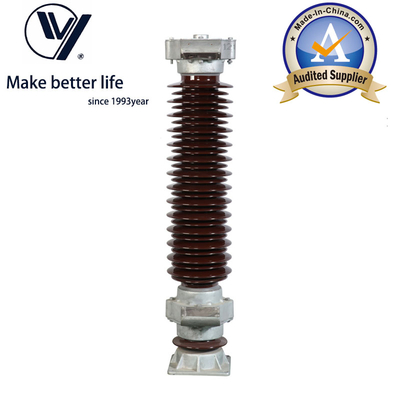

132kV Porcelain Housing Surge Arrester - Model Y10W5-132

Product Specifications

Attribute	Value
Model NO.	Y10W5-132
Installation	Parallel Arrester
Application	Substation
Size	Large
Operation Voltage	High Voltage
Material	ZnO
Creepage Distance	4250mm
Housing	Porcelain
Line Discharge Class	3
Specification	IEC 60099-4

Key Features

Superior electrical performance and reliability
Lightweight design for easier installation
Explosion and shatter proof construction
Excellent performance in polluted environments
Vandalism resistant design
Moisture ingress protection
High mechanical strength
UV radiation insensitive
Excellent resistance to ozone and corona
Superior tracking resistance

Technical Parameters

Rated voltage	132kV
Height	1970mm
Creepage distance	4250mm
Maximum system voltage Um	145/161KV
Line discharge level	2/3/4
Long duration current impulse	600/800/1000A
4/10 μs current impulse	100KA
Lightning impulse withstand	650KV
Power frequency voltage withstand	275KV

Detailed Specifications

Parameter	Value
MCOV (kV)	106
Nominal Current (kA)	10
Residual voltage of steep impulse at 5kA (kV)	396
8/20µS Residual voltage of lightning impulse current (Peak value) at 5kA (kV)	334
Residual voltage of switching impulse current (peak value) at 1kA (kV)	263
1mA D.C reference voltage (kV)	192
2mS long duration impulse current (A)	850
4/10µS High current impulse (kA)	100
